Blue Sea Systems 5026 ST Blade Fuse Block 12 Circuit with Ground and Cover

Price: $44.00

As of 2026-04-20 22:46:11 UTC (more info)

Product prices and availability are accurate as of 2026-04-20 22:46:11 UTC and are subject to change. Any price and availability information displayed on https://www.amazon.com at the time of purchase will apply to the purchase of this product.

Buy Now from Amazon

In Stock

Product Information (more info)

See All Customer Reviews
View Product Details

CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON SERVICES LLC. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Product Features

Blue Sea Systems Fuse Block ST Blade 12 Circuit with Ground and Cover, part number 5026, can be used for 24-hour circuits

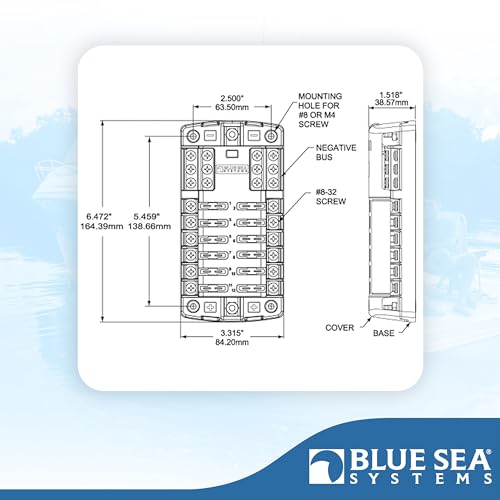

Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer

Positive distribution bus with #10-32 stud

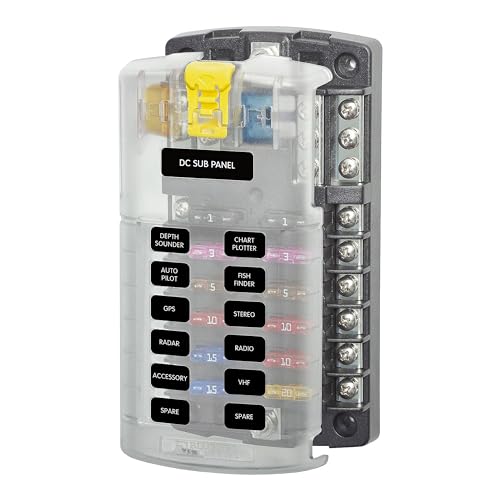

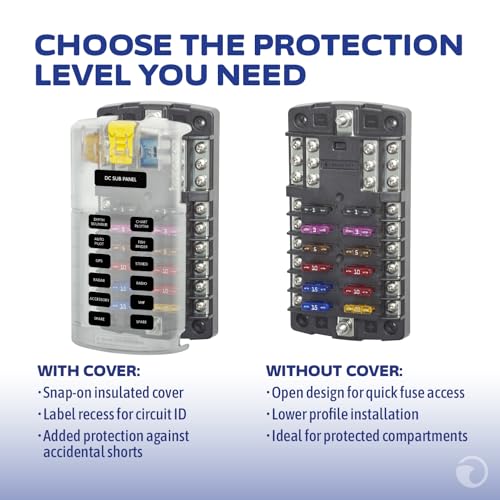

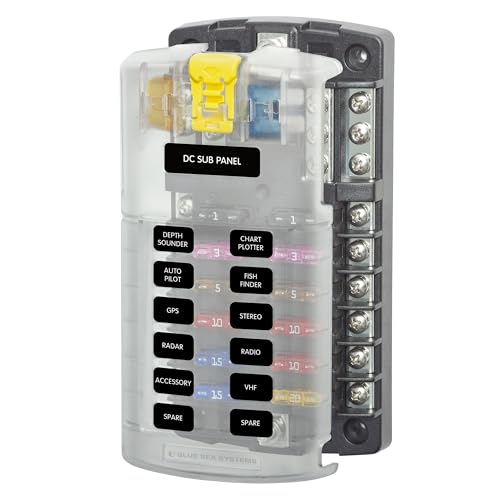

Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open

Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses - fuses sold separately. Includes 20 write on circuit labels
